Description

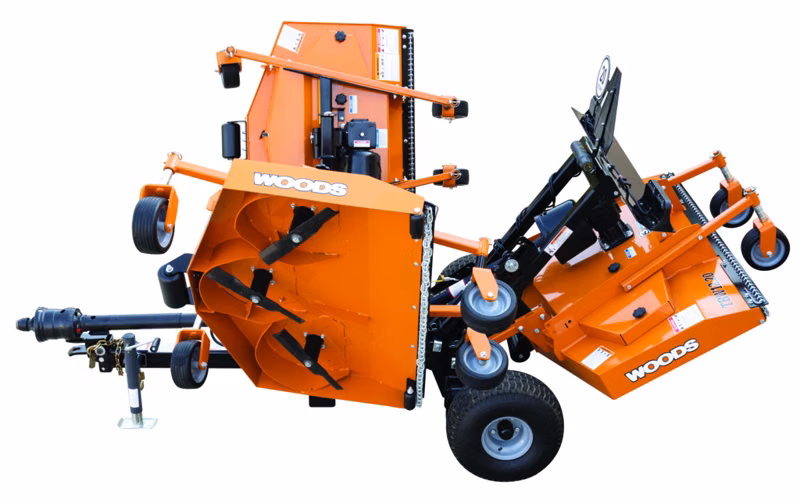

Woods TBW12.20
Specifications
Manufacturer
Woods
Model
TBW12.20
Year
2024
Category
Mowers
Subcategory
Rear-mount Mowers
Tractor PTO Speed (rpm)
540
Tractor PTO HP
25-60
Shipping Weight (lbs)
2051
Hitch
CAT 1 Drawbar
Cutting Width (in)
144
Cutting Height (in)
1.5 – 4.5
Wing Deck Cut Width (in)
48
Center Deck Cut Width (in)
60
Deck Overlap (in)
6
Overall Width (in)
147
Max Overall Length (in)
141
Transport Width (in)
91
Transport Length (in)
135
Splitter Gearbox HP
100
Blade Tip Speed (fpm)
18,000
Drive Type
Gearbox over v-belt
Input Driveline
CAT 3 (CV)
Wing Drivelines
CAT 3
Transport Tires (in)
(2) 20.5 x 8-10
Caster Wheels (in)
(10) 8 x 3.5 solid
Wing Deck Lift Cylinders
3 x 10 single-acting
Center Deck Lift Cylinders
3 x 8 single-acting
Trailer Frame Construction
4.0 x 4.0 x .25 square tube
Deck Thickness
10 gauge
Blade Spindles
(9) ductile iron, lubed-for-life
Blade Dimensions (in)
(6) .25 x 2.5 x 17.0, (3) .25 x 2.5 x 20.8
Hitch Adjustment
Floating clevis, multi-position
Transport Lock
Automatic, manual release
Transport Tires
Non-highway speed-rated
Cut Height Adjustment
Caster spacers
Belt Construction
B-section, Kevlar®
Belt Cover
Clutching cover
Belt Adjustment
Spring-loaded idler
Anti-Scalp Rollers
(1) Front and (2) Rear Optional
