Description

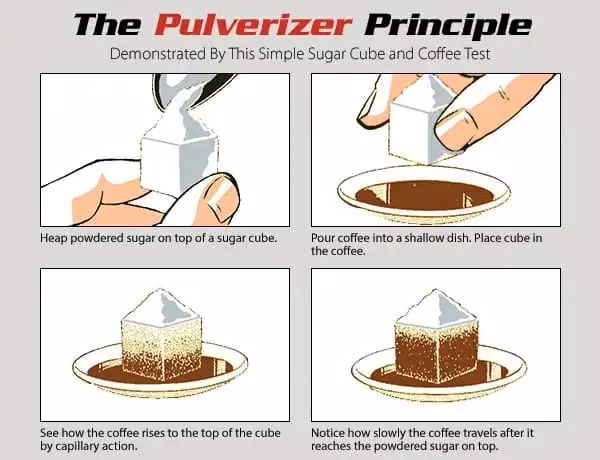

It’s About Higher Yield All models in the Brillion Pulverizer line have a common denominator…HIGHER YIELD. Producers know that higher yields start with a properly prepared seedbed and a firm seedbed is critical to maintain a uniform planting depth. The ideal seedbed should be firm with fine particles at the seed depth and should have a layer of loose mulch on the surface to slow evaporation and conserve moisture. Many of the most valuable nutrients are locked in the clods and root crowns left in the field. The Pulverizer crushes those clods and breaks down the root crowns to release those nutrients for use by the crop. At the same time, air pockets are eliminated and moisture is drawn into the root zone through capillary action. Good seed to soil contact creates more uniform germination, pollination, and maturity…and that means increased yields and greater profits.
Specifications
Manufacturer
Brillion
Model
WFP40
Year
2024
Category
Pulverizers
Subcategory
Pulverizer
Approximate Weight (WFPDS) 20” Notched Ductile Iron Wheels with Scrapers
11,300 lbs (5,126 kg)
Approximate Weight (WFPD) 20” Notched Ductile Iron Wheels Excluding Scrapers
10,896 lbs (4,942 kg)
Approximate Weight (WFPO) 20” Optimizer Ductile Iron Wheels
11,490 lbs (5,212 kg)
Approximate Weight (WFPC) 20” Crowfoot Ductile Iron Wheels
9,885 lbs (4,484 kg)
Approximate Tongue Weight Approximate Tongue Weight Drawbar Retracted, Transport
1,125 lbs (510 kg)
Approximate Tongue Weight Approximate Tongue Weight Drawbar Extended, Transport
800 lbs (363 kg)
Approximate Tongue Weight Operation
Under 200 lbs (91 kg)
Approximate Tongue Weight Road Clearance
15 in (381 mm)
Approximate Tongue Weight Hydraulic Circuits Required
1
Number of Pulverizer Wheels (WFPDS) 20” Notched Ductile Iron Wheels with Scrapers one
123
Number of Pulverizer Wheels (WFPD) 20” Notched Ductile Iron Wheels Excluding Scrapers one
123
Number of Pulverizer Wheels (WFPO) 20” Optimizer Ductile Iron Wheels one
81
Number of Pulverizer Wheels (WFPC) 20” Crowfoot Ductile Iron Wheels one
81
Axle Size WFPDS, WFPD, WFPO, WFPC Models
8 in (203 mm)
Axle Size Hitch
Pull-Type with Hydraulic Transport
Axle Size Tire Size
12.5 x 15 FI Tires on 8 Bolt Rims
Axle Size Horsepower Requirements
3 to 5 HP per ft (2.2 to 3.7 kW per m)
Axle Size Horsepower Requirements As Companion Tool
1 to 3 HP per ft (0.75 to 2.2 kW per m)
Axle Size Recommended Operating Speed
3 to 8 MPH (4.8 to 12.9 km/h)
Approximate Tongue Weight Working Width
40 ft 4 in (12.3 m)
Approximate Tongue Weight Transport Width
17 ft 5 in (5.3 m)
Approximate Tongue Weight Transport Height
9 ft 0 in (2.7 m)
Approximate Tongue Weight Overall Length, Drawbar Retracted
20 ft 0 in (6.1 m)
Approximate Tongue Weight Overall Length, Drawbar Extended
26 ft 8 in (8.1 m)
