Description

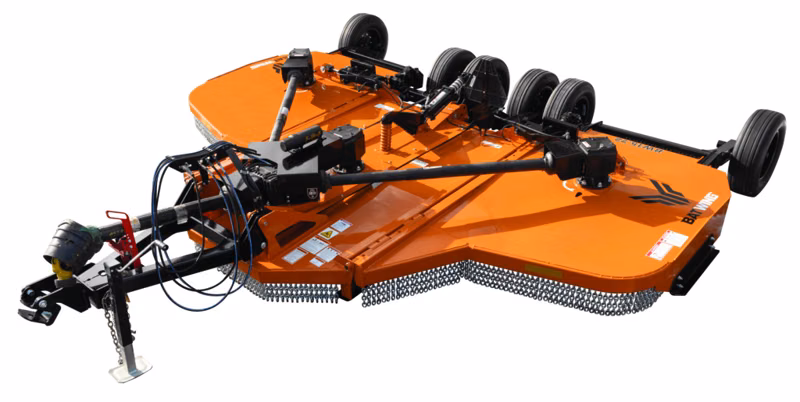

Woods - BW15.72
Specifications
Manufacturer
Woods
Model
BW15.72
Year
2025
Category
Batwing Rotary Cutters
Subcategory
Rotary Cutters
Product Tier
Extra Heavy-Duty
Tractor PTO HP
65-300
Tractor PTO (rpm)
540 or 1,000
Hitch Type
Swivel clevis hitch
Cutting Area Shielding
Single or Double Chain
Blade Tip Speed (fpm)
15,526 (wing), 16,286 (center) at 540 rpm
Blade Tip Speed (fpm) one
15,708 (wing), 16,132 (center) at 1,000 rpm
Weight/Tongue Weight (lbs)
5,635/2,410
Hydrualics Wing Flex (degrees)
90 up, 22 down
Stump Jumper Type
Round
Wheel Type
21 in laminated; 25 in severe-duty Ag; 29 in used aircraft foam-filled options for severe-duty Ag and used aircraft
Driveline Rating
CAT 6 CV main, CAT 5 wing
Gearbox Rating (hp)
275 splitter / 225 center and wing
Adjustable Cutting Height (in)
2-15
Cutting Capacity Diameter (in)
4.5
Cutting Width (ft)
15
Blade Size (in)
.5 x 4
Blade Overlap (in)
6
Transport Width (in)
96
Side Skirt (in)
.25 thick x 13 deep
Deck Thickness (in)
0.180
Output Shaft Size (in)
3 dia
